Products Description

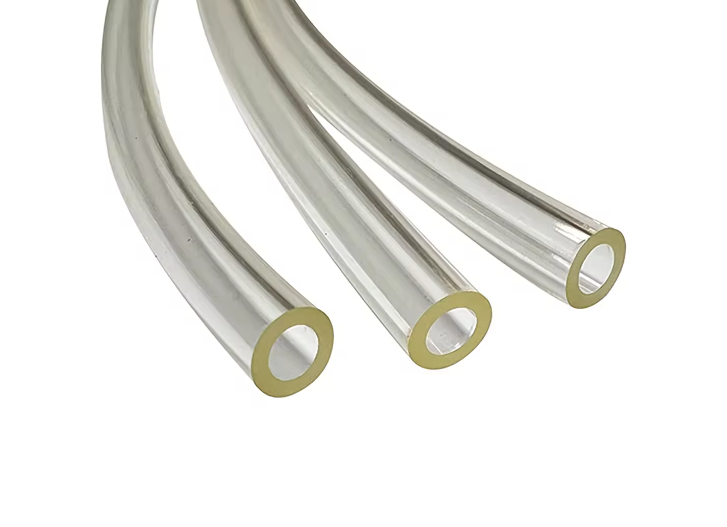

T2285 series is a TPU tube made of polyether thermoplastic polyurethane elastomer with smooth surface, which can be used for automotive pneumatic tube, medical infusion tube, etc.
Product Features
• Excellent mechanical properties , high voltage resistance.
• Excellent weather resistance , low temperature resistance.
• Suitable for high frequency processing.
• Has good biocompatibility .
Technical Information
The following technical information and data are representative values or typical values , should not be used as a product specification.
Typical Product Features
Characteristic | Value |
TPU tube inner diameter | 0.088-0.100 inch |
TPU tube outer diameter | 0.146-0.160 inch |
Each length | Customizable (rollable) |
Color | Customizable |
Hardness | 85A (customizable) |
TPU Type | Polyether |
Typical physical properties
Test Item | Test Method | Unit | Test Value |
Hardness | ASTM D2240 | Shore A | 87 |
Density | ASTM D792 | g/cm³ | 1.1 1 |
Color | Visual inspection | / | Natural Color |
REACH | REACH Regulation | / | Pass |
ROHS | ROHS regulations | / | Pass |
CA65 | CA65 Regulation | / | Pass |
Storage and Shelf Life
Place the TPU tube in a clean place , stay away from over humidity. Keep out of direct sunlight. Keep at a temperature of 16 -27°C Degree and 40-60% Store in original packaging under relative humidity conditions.
For best performance , this product should be used within 12 months from the date of production.
