Products Description

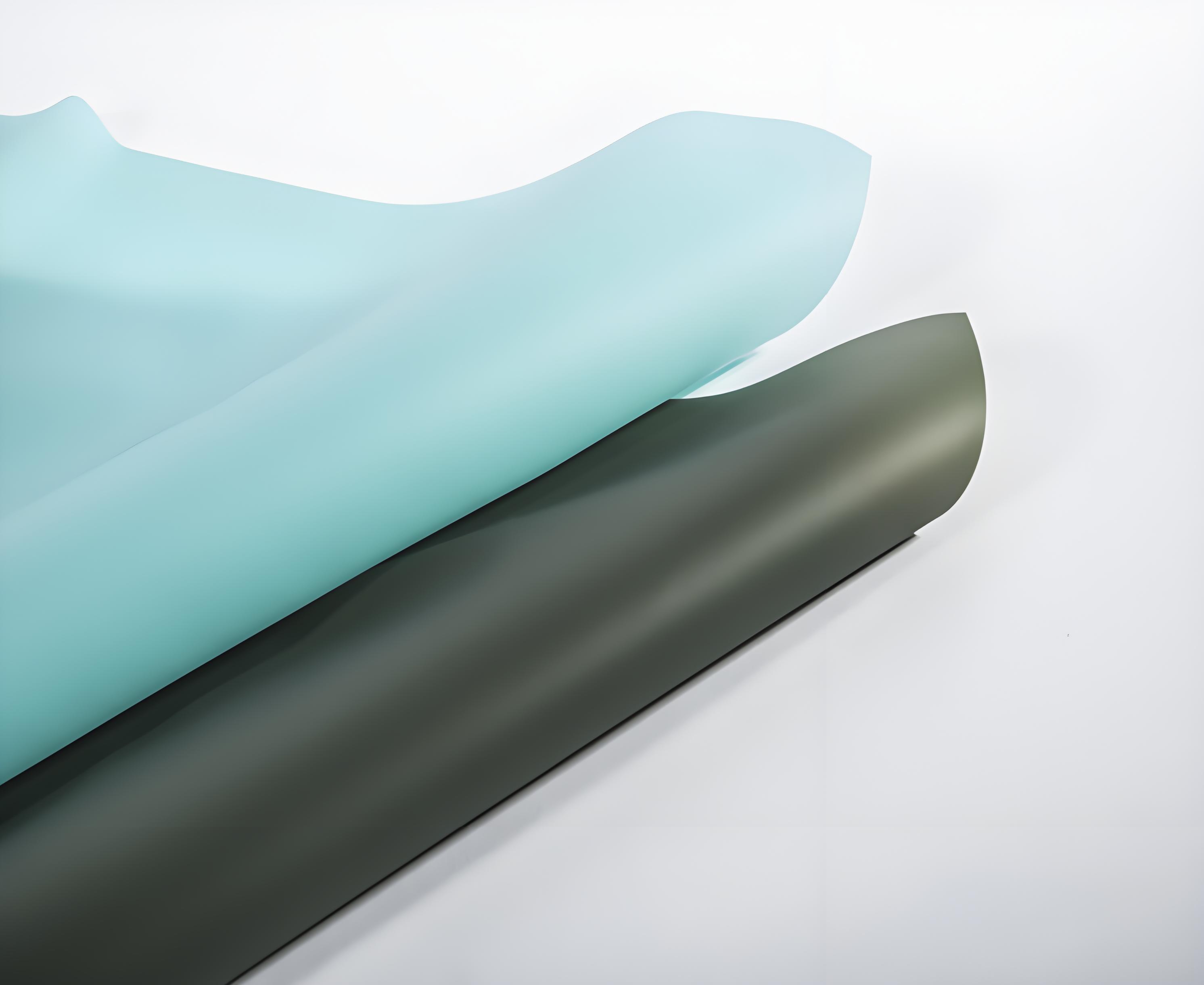

The XG1192 series is a Ester-Based TPU film specially developed for mid-range car seat assembly and after-sales service manufacturers, suitable for pneumatic lumbar support in car seat systems.
Product Features
• Excellent mechanical properties, high pressure resistance.
• Superior high temperature resistance.
• Extremely low VOC, low odor.
• Good flame resistance, self-extinguishing.
• Suitable for high-frequency processing.
• Low price cost, economical and affordable.
Technical Information
The following technical information and data are representative or typical values and should not be used as product specifications.
Typical Product Features
Features | Value |
TPU Film Thickness | 0.4/0.5mm |
Width | Regular 1450mm （Can be Customized） |
Roll Length | 30-50m |
Surface | Double Side Foggy |
Odor（ 80℃*2h） | Class 3 |
Flame Retardant（ GB8410） | A-0 |
Pressure resistance | >40Kpa |
Typical Physical Properties
Test Item | Test Method | Unit | Test Value |
Hardness | ASTM D2240 | Shore A | 92 |
Thickness | ASTM D3767 | mm | 0.408 |
Density | ASTM D792 | g/cm³ | 1.22 |
Color | Visual Inspection | / | Foggy |
Tensile Strength | ASTM D412/Die C |
MPa | CD：62.20 MD：65.61 |
100%MOD | ASTM D412/Die C |
MPa | CD：9.34 MD：9.59 |
300%MOD | ASTM D412/Die C |
MPa | CD：22.32 MD：23.47 |
Elongation | ASTM D412/Die C |
% | CD：636 MD：639 |
Tear Strengthnotes1 |
ASTM D624 | KN/m | CD：116.86 MD：117.12 |
Melting Point | DSC | ℃ | 171 |
Flame Retardant | GB 8410-2006 | / | A-0 |
Notes1: The die used for tear strength is a right angle die. | |||
Storage and Shelf Life
Store the film in a clean place away from excessive moisture and direct sunlight. Store in the original packaging at 16-27°C and 40-60% relative humidity.
For best performance, this product should be used within 12 months from the date of production.
